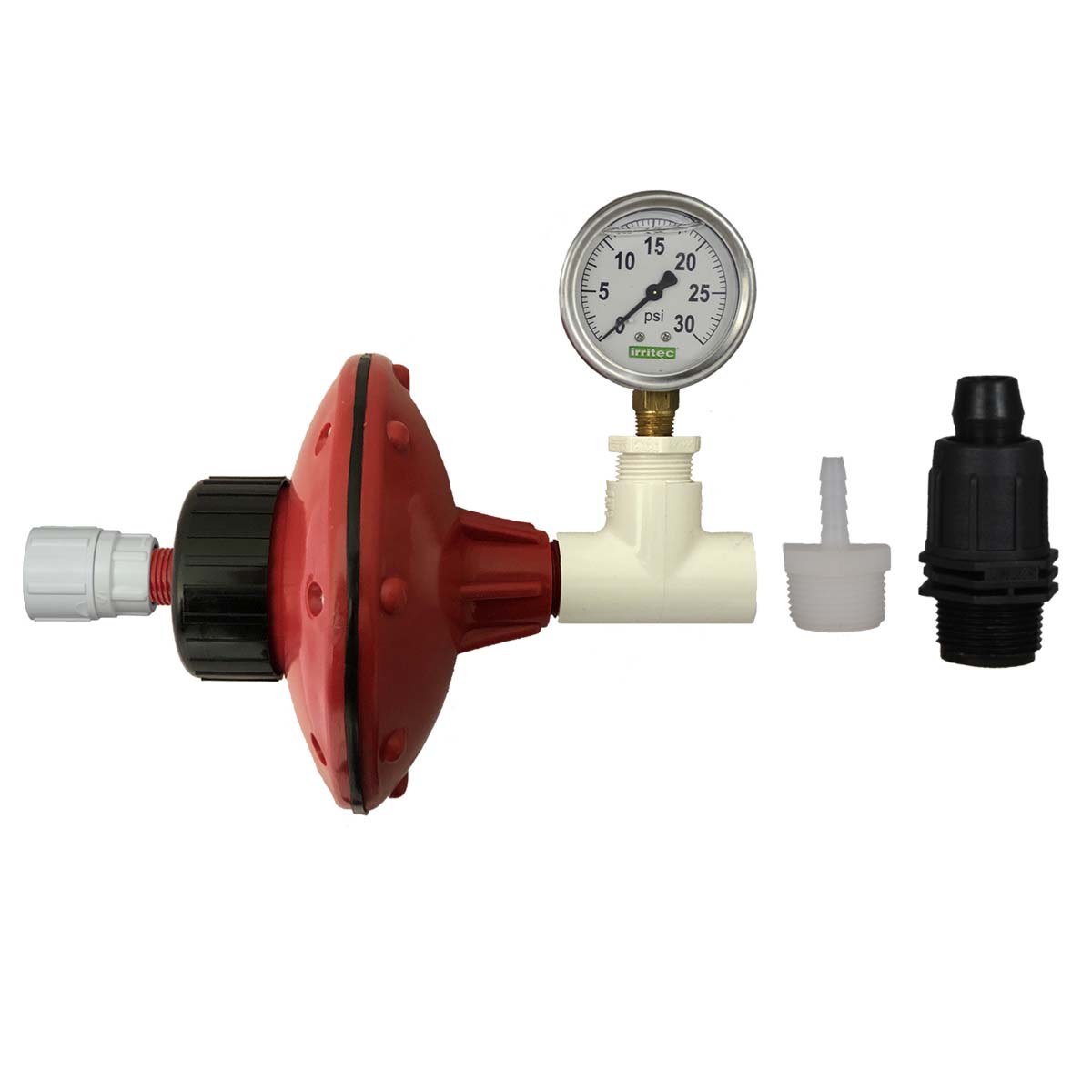

Whole System Adjustable Pressure Reducer for Blumat systems

• Built-in 0–30 PSI pressure gauge for real-time monitoring
• High flow rate of over 5 gallons per minute — can replace six or more standard Blumat pressure reducers
• Adjustable from 2–14 PSI to match any distribution method (drippers, drip rings, BluSoak)
• Powerful enough for the largest systems, precise enough for single-zone setups

The reducer body has a ½" male pipe thread (MPT) inlet and a ¾" female pipe thread (FPT) outlet. Included adapters make it easy to install:

• Input — ¾" PVC swivel adapter for standard garden hoses or hose bibs
• Output — ¾" to ½" Perma-Loc fitting for Trunk Line Kits
• Output — ¾" to 8mm adapter for Supply Line Kits with SuperFlex tubing
• Also includes — ¾" FPT tee and 1/4" to ¾" MBT bushing

1. Tape all male fittings with the provided tape, wrapping 5–6 times clockwise.

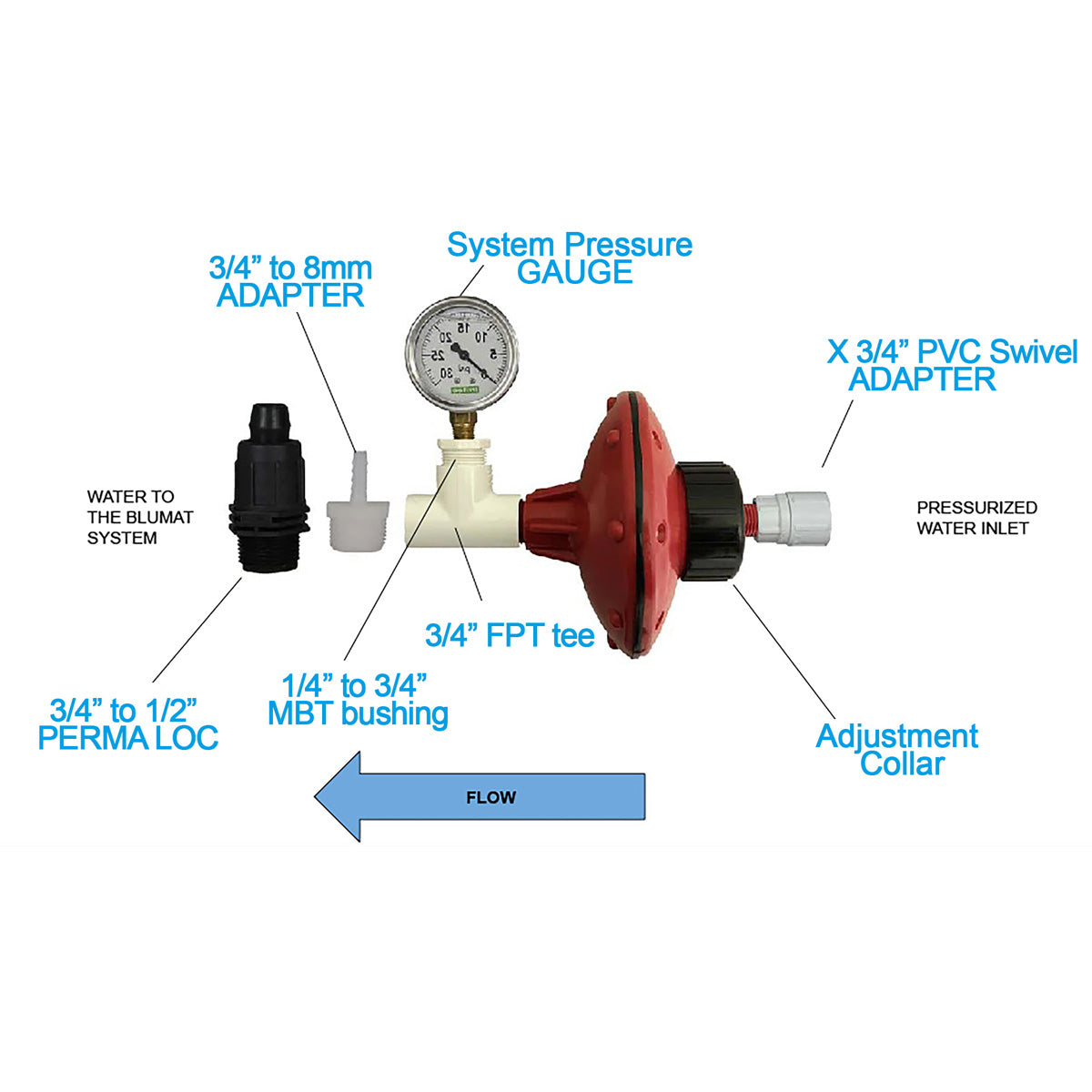

2. Assemble parts as pictured in the instruction diagram.
3. Connect to a valve on a pump kit or to a hose bib using the provided ¾" swivel adapter.
4. Using the provided fittings, connect to your Blumat system supply line.
5. Open the incoming water to check current system pressure. Recommended ranges:
   • Drip rings — 12–15 PSI
   • BluSoak — 7–10 PSI
6. To adjust pressure: turn off incoming water, release system pressure by opening a valve on the Blumat supply line until the gauge reads 0, then turn the black adjustment collar (tighten for more pressure, loosen for less).
7. Close the Blumat supply line valve and open incoming water to re-pressurize. Check the gauge. If not in range, repeat steps 6–7 until correct.
